Industrial Fasteners

Nuts, bolts, washers, anchors, threaded rods, rivets, sealing rings and steel nail coils, manufactured in Ahmedabad to IS, DIN, ASTM and ASME dimensions, and shipped to buyers in 17+ countries.

Every batch is made as a load-bearing part, not as hardware: thread form, hardness and coating thickness are checked against the standard your order names, and the results travel with the consignment.

Get Quote See the range

8Product families

17+Countries supplied

ISO9001:2015 certified

MTCIssued per consignment

* Mill test certificates and dimensional reports accompany every export shipment.

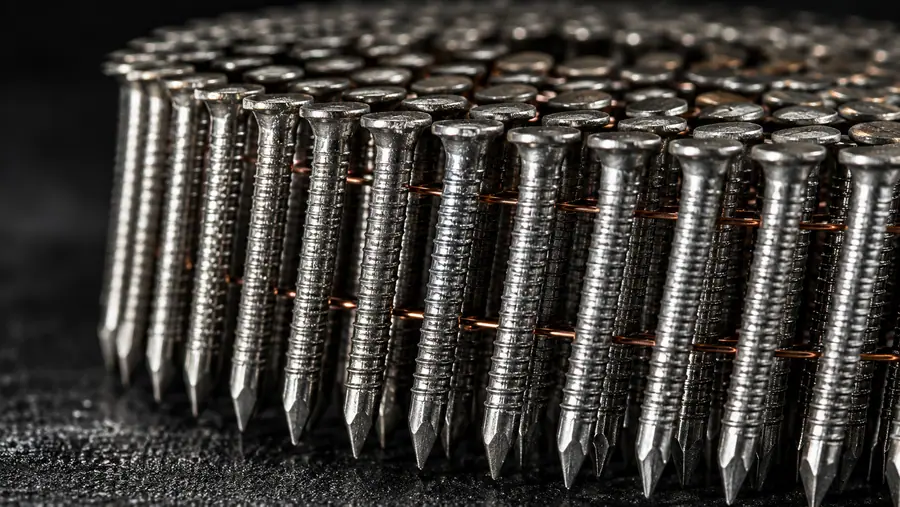

Ring shank nail coil
Pallet manufacturing line
Smooth shank coiled nails
Roofing system fixings
Screw shank coiled nails
Export packing and cartoning
Coastal construction fixings

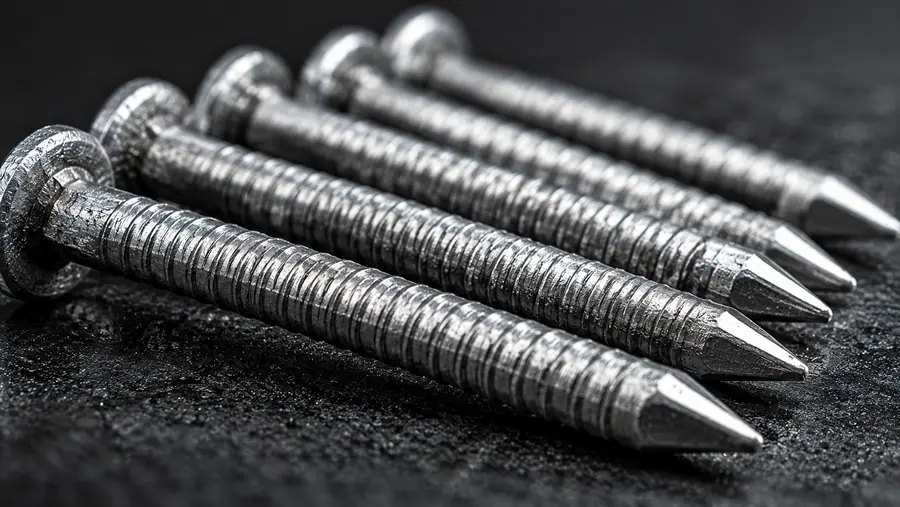

Ring shank nail detail

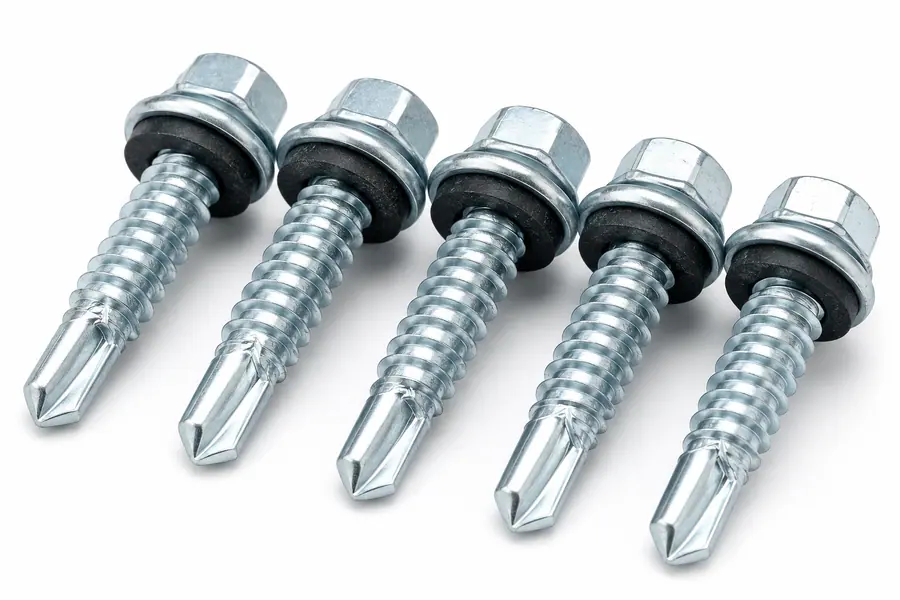

Self-drilling TEK screws

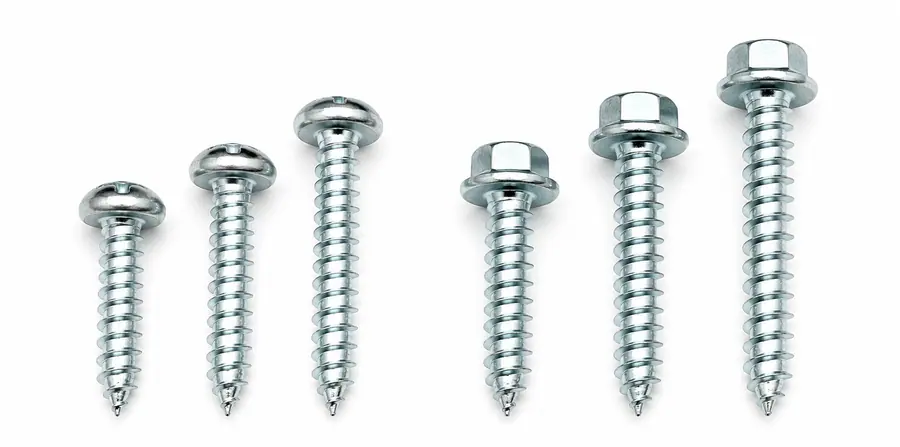

Self-tapping screws

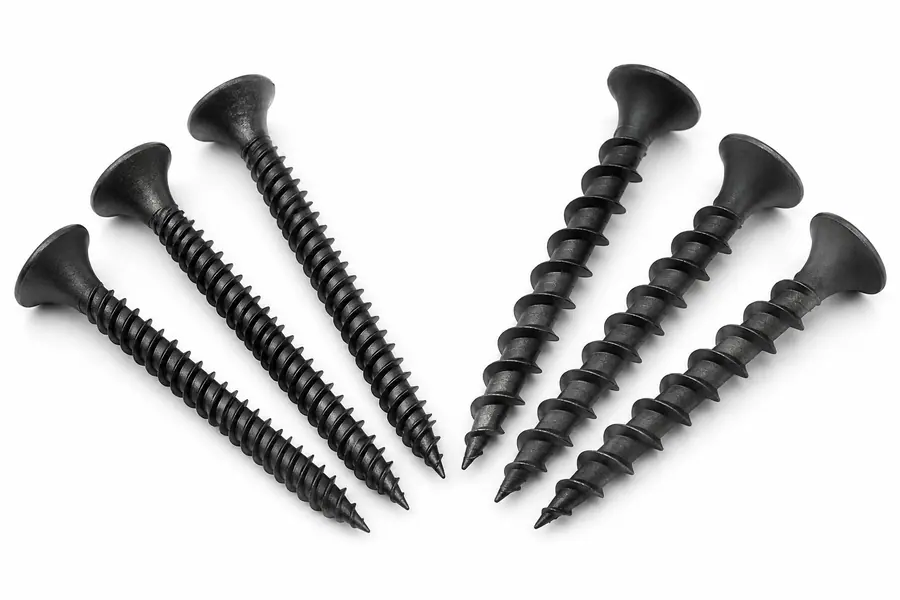

Drywall screws

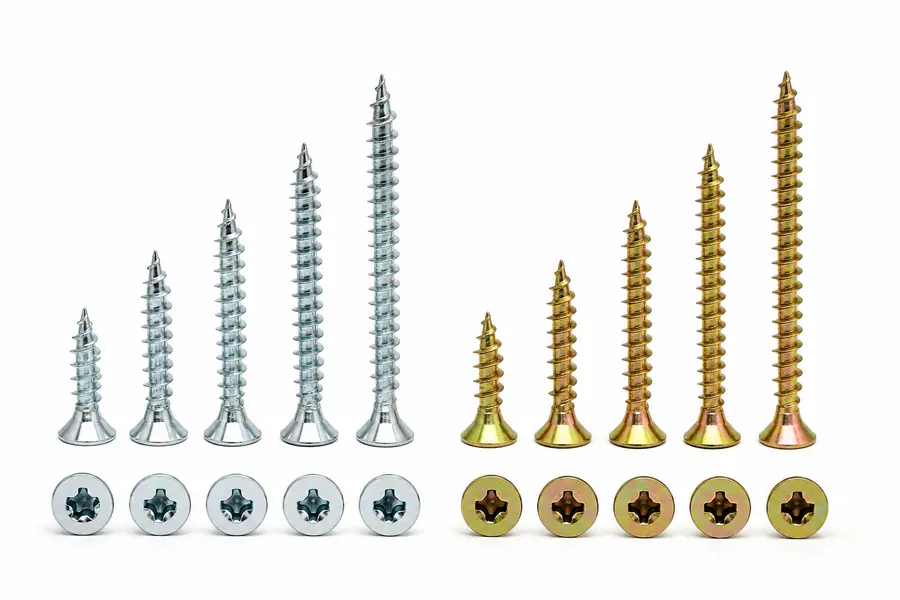

Chipboard and particleboard screws
Ring shank nail coil
Pallet manufacturing line
Smooth shank coiled nails
Roofing system fixings
Screw shank coiled nails
Export packing and cartoning
Coastal construction fixings
Ring shank nail detail
Self-drilling TEK screws
Self-tapping screws
Drywall screws
Chipboard and particleboard screws

Manufacturing Division

Fasteners built for load, vibration and weather

A fastener is usually the smallest part in an assembly and the first one blamed when a joint moves. Our fastener division exists to take that risk off your drawing: threaded and non-threaded parts produced to a named standard, in the material and finish the working environment actually calls for.

The range serves automotive assembly, construction and infrastructure, heavy machinery, metal fabrication and the energy sector, from a single-pallet trial order through to repeat container volumes for OEMs and distributors. Standard catalogue sizes ship from production; anything outside them we make to your drawing or to a sample you send us.

Product Range

What we manufacture

Eight product families. Each is listed with the variants we hold, the materials we run it in, the standards we quote against, and where it typically ends up, so you can check fit before you write an enquiry.

Threaded

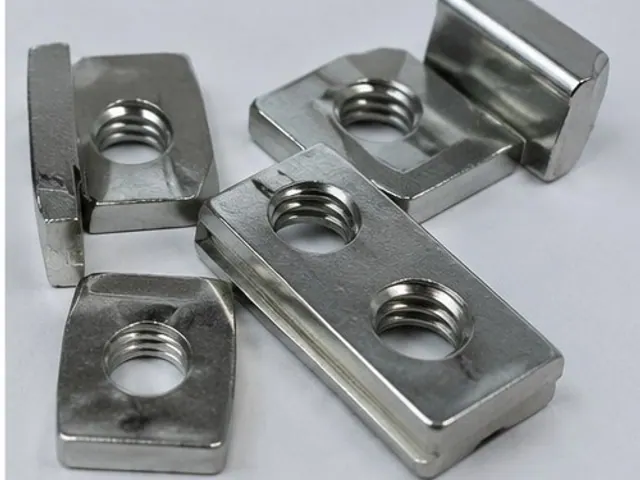

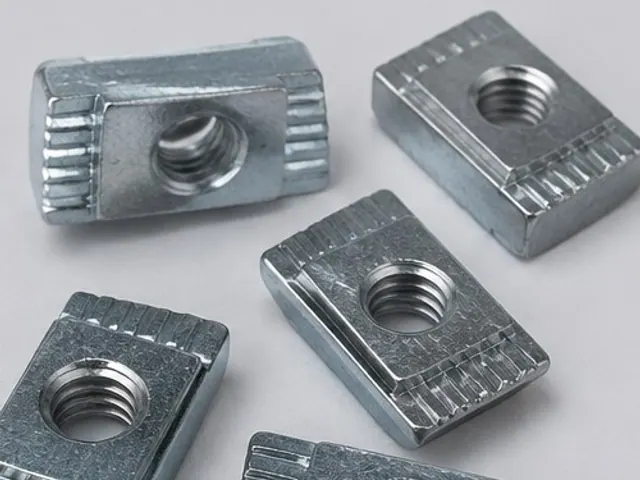

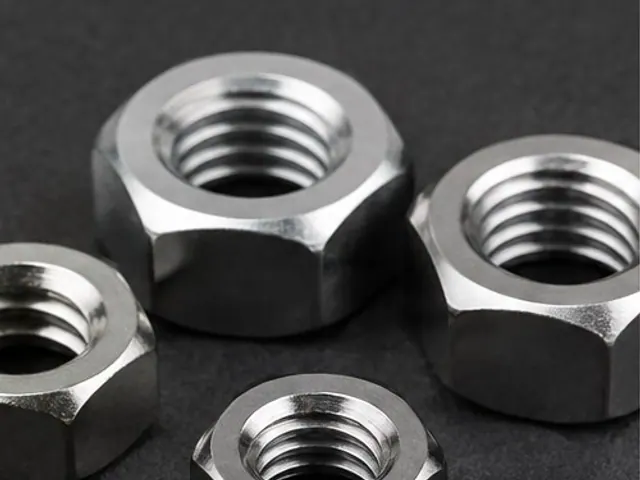

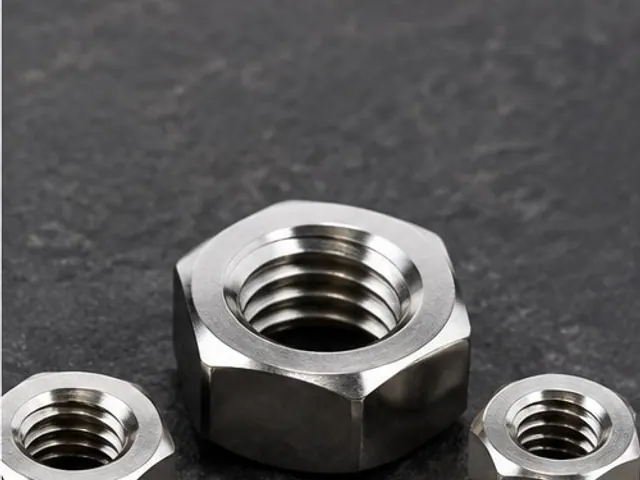

Nuts

A nut only earns its place if it still holds after the joint has been shaken for a year. We produce hex nuts across the common property classes, plus nylon-insert and flange variants for assemblies that see continuous vibration. Thread gauging is done batch by batch, so the nut runs freely down your bolt without being loose on it: the difference between a joint that torques correctly and one that strips on the line.

View full Nuts page

Variants: Hex, nylock, flange, dome / cap, wing, square, coupling, lock nuts
Sizes: M4 – M36 (larger to order)
Material: Mild steel, alloy steel, stainless 304 / 316, brass
Standards: IS 1364, DIN 934, ISO 4032, ASTM A563
Applications: Automotive assembly, machinery, structural steelwork

Types we manufacture

Hex nut
Nylock nut
Flange nut
Dome / cap nut
Wing nut
Square nut
Coupling nut
Lock nut

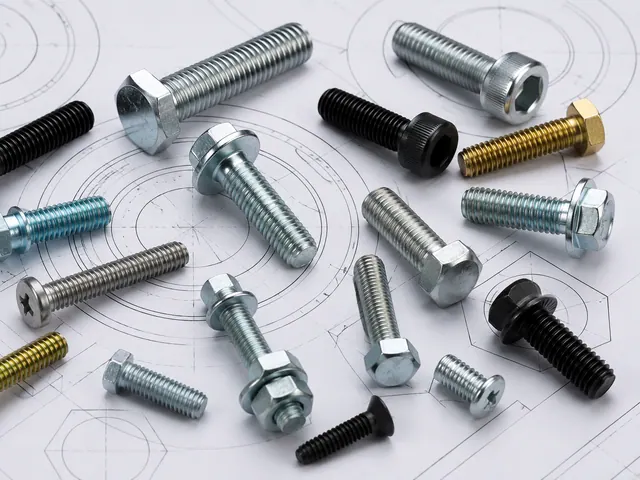

Bolt range laid over an engineering drawing

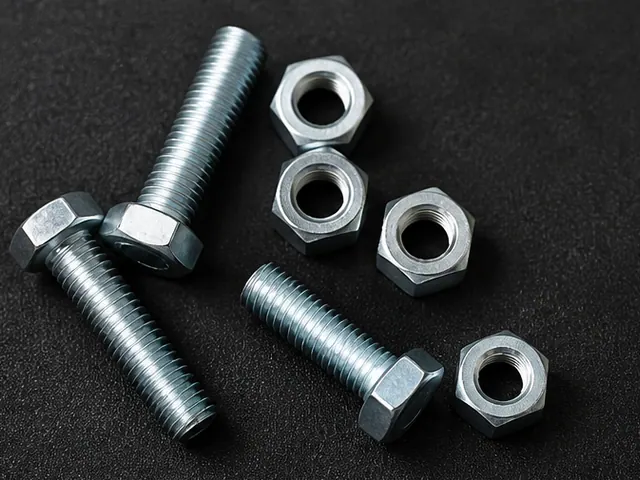

Zinc-plated hex bolts with matching nuts

Threaded

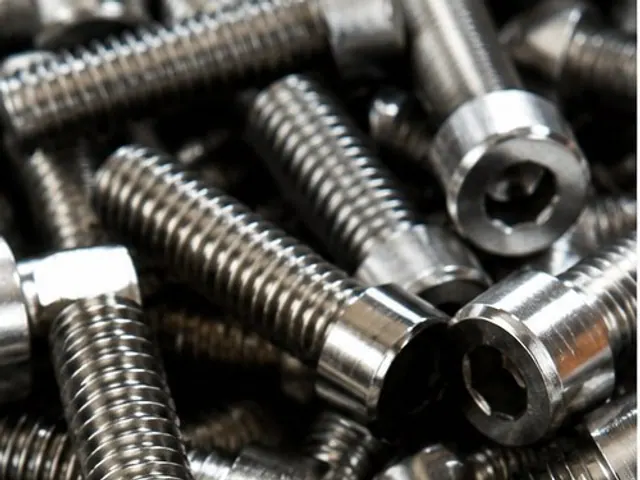

Bolts

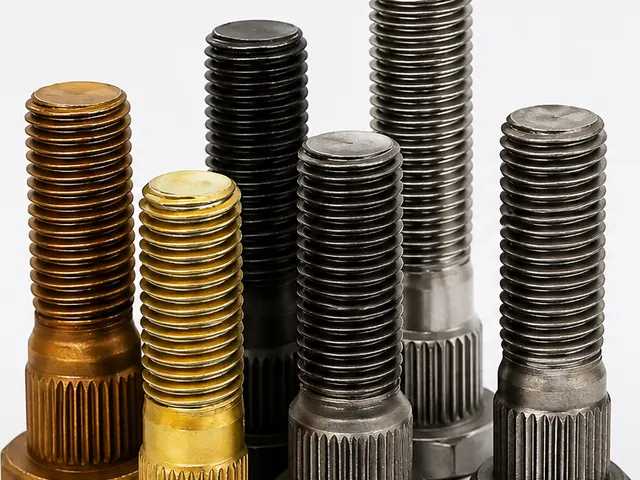

Hex head bolts in both half thread and full thread, heat-treated to the property class on your order. Threads are rolled rather than cut, which leaves the grain of the steel following the thread profile instead of being sliced across it: a rolled thread survives repeated tightening cycles that a cut thread will eventually shear. Non-standard lengths and drilled or slotted heads are made to drawing.

View full Bolts page

Variants: Hex, carriage, socket cap, eye, U-bolt, flange, stud, foundation
Sizes: M6 – M42 · lengths to 300 mm
Class: 4.6, 8.8, 10.9 · A2 / A4 in stainless
Standards: IS 1363, DIN 931 / 933, ISO 4014, ASTM A307 / A193
Applications: Structural connections, machinery, infrastructure

Types we manufacture

Hex bolt
Carriage bolt
Socket cap bolt
Eye bolt
U-bolt
Flange bolt
Stud bolt
Foundation bolt

Non-threaded

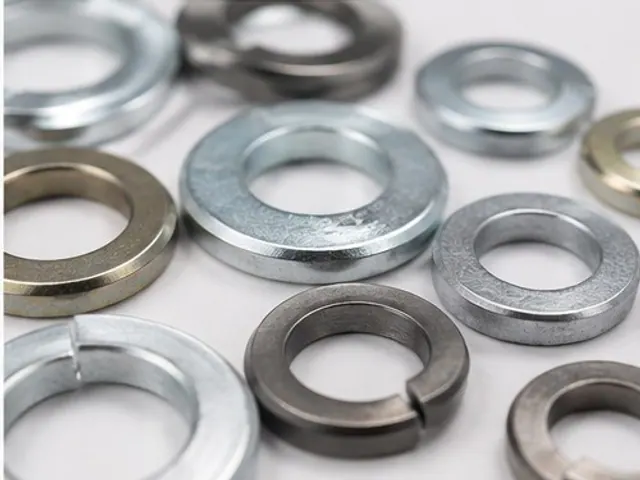

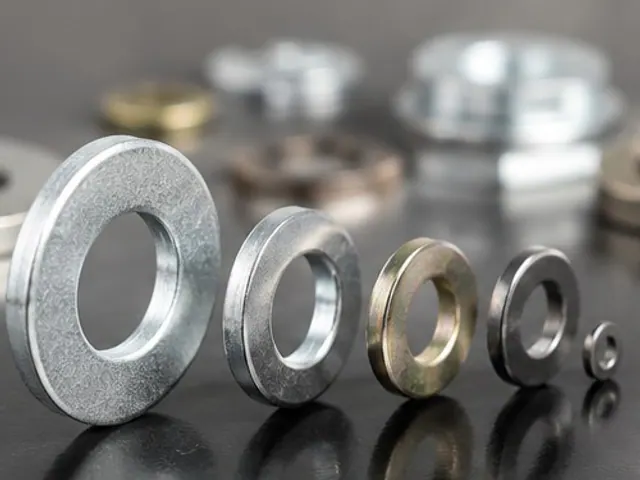

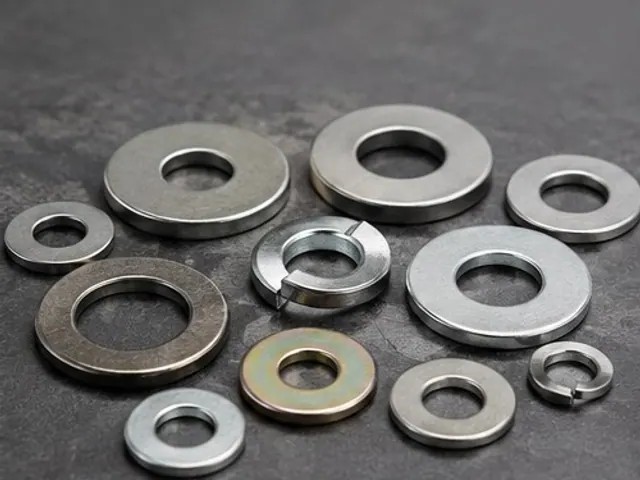

Washers

Washers spread the clamping load over a wider footprint so a bolt head does not bite into softer material, and spring and lock types add the tension that keeps a joint from backing off under vibration. We supply plain, spring, lock, tab and shim washers, including precision thicknesses cut to your tolerance where a stack has to be shimmed to a specific height.

View full Washers page

Variants: Plain, spring, lock, tab, tapered, shim / precision
Sizes: M4 – M36 · custom OD and thickness
Material: Mild steel, spring steel, stainless 304 / 316, brass
Standards: IS 2016, DIN 125 / 127, ISO 7089
Applications: Automotive, construction, engineering, heavy machinery

Types we manufacture

Plain washer

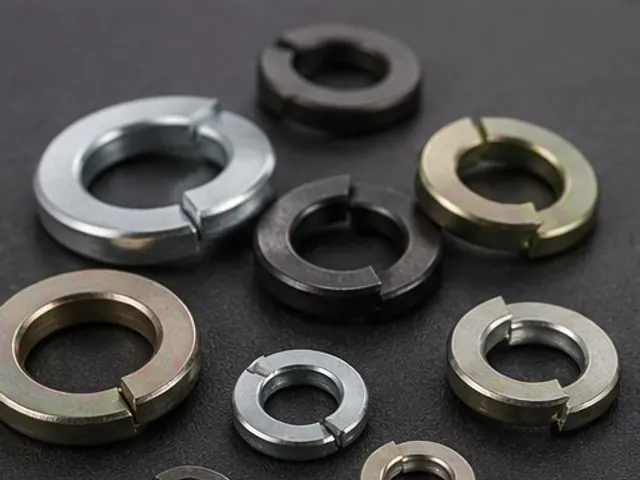

Spring washer
Lock washer
Tab washer
Tapered washer
Shim washer

Threaded · structural

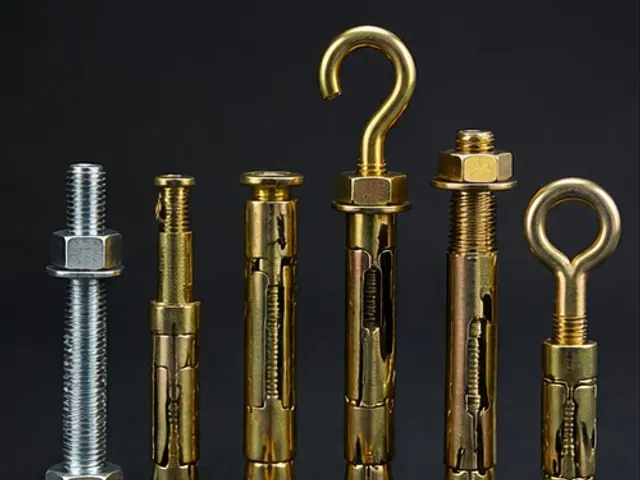

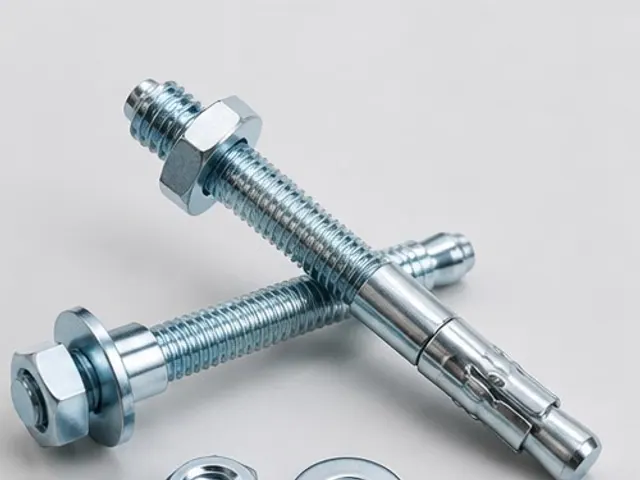

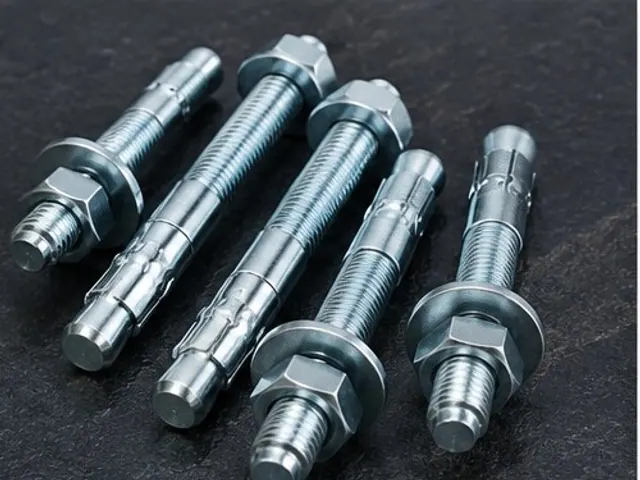

Anchor bolts

Anchor bolts tie steelwork, machine bases and equipment down to concrete, which means they are cast in and never inspected again. We make J, L and U-type foundation anchors plus threaded-end studs, in high-tensile material with the embedded length and projection set from your foundation drawing. Hot-dip galvanising is available where the bolt sits at a slab edge and moisture can track down the shaft.

View full Anchor bolts page

Variants: Wedge, sleeve, J-type, L-type, hook, chemical, straight stud with plate
Sizes: M12 – M64 · embedded length to drawing
Material: Carbon steel, high-tensile alloy, stainless
Standards: IS 5624, DIN 529, ASTM F1554
Applications: Machine foundations, columns, plant and equipment

Types we manufacture

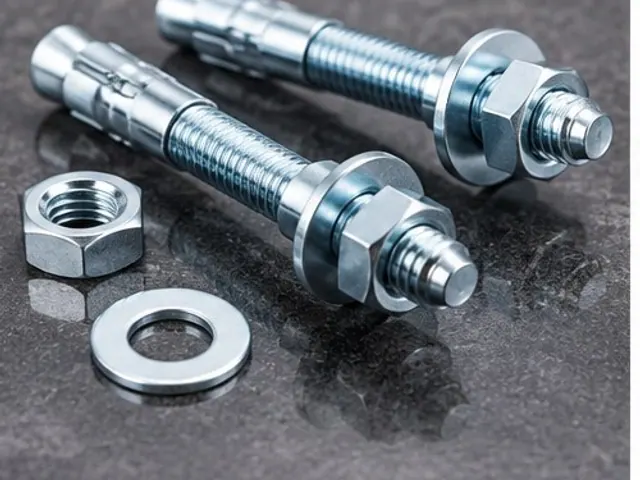

Wedge anchor
Sleeve anchor
J-type anchor
L-type anchor
Hook anchor
Chemical anchor
Straight stud with plate

Threaded

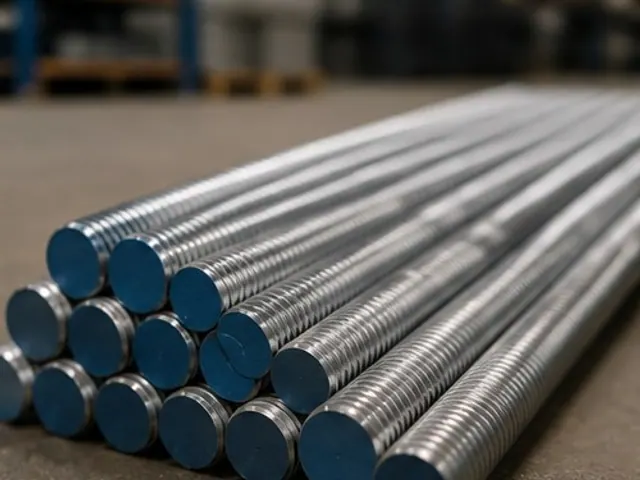

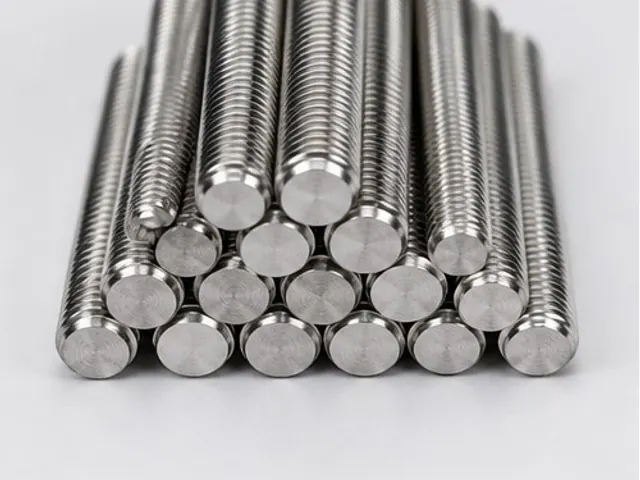

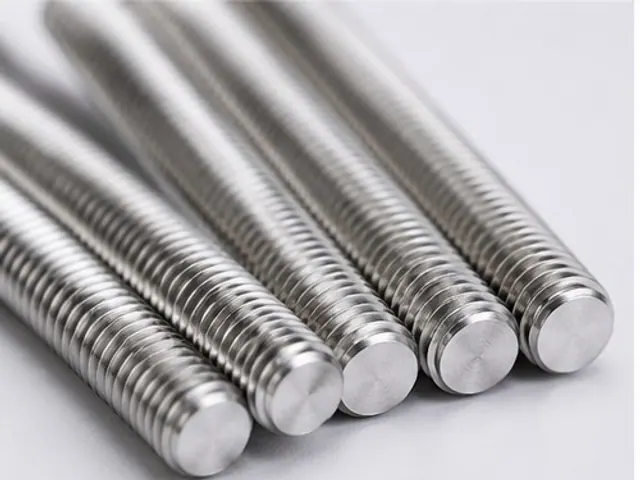

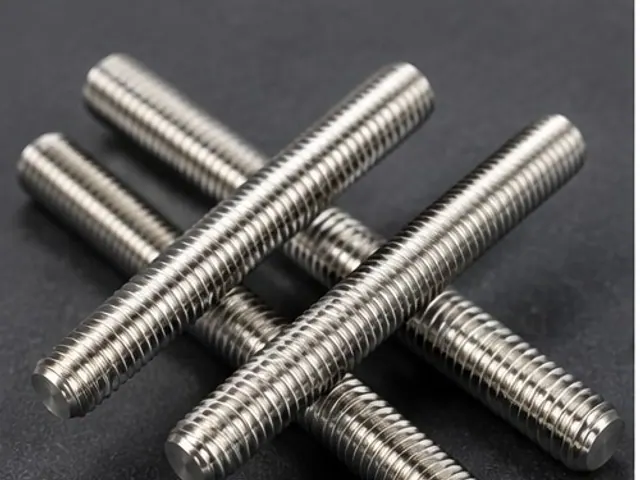

Threaded rods

Full-length studding for anything that has to be hung, propped or tied back: pipe and duct suspension, cable-tray supports, formwork ties and structural hold-downs. Supplied in standard one, two and three metre lengths for cutting on site, or pre-cut and end-chamfered so the rod starts a nut cleanly without a die. Zinc-plated for internal work, hot-dip or stainless where the rod is exposed.

View full Threaded rods page

Variants: Full thread rod, double-end stud, cut length rod, tie rod
Sizes: M6 – M36 · 1 m / 2 m / 3 m or cut to length
Material: Carbon steel, zinc-coated steel, stainless 304 / 316
Standards: DIN 975, DIN 976, ISO 898-1
Applications: Suspension systems, electrical supports, structural fastening

Types we manufacture

Full thread rod
Double-end stud
Cut length rod
Tie rod

Non-threaded · permanent

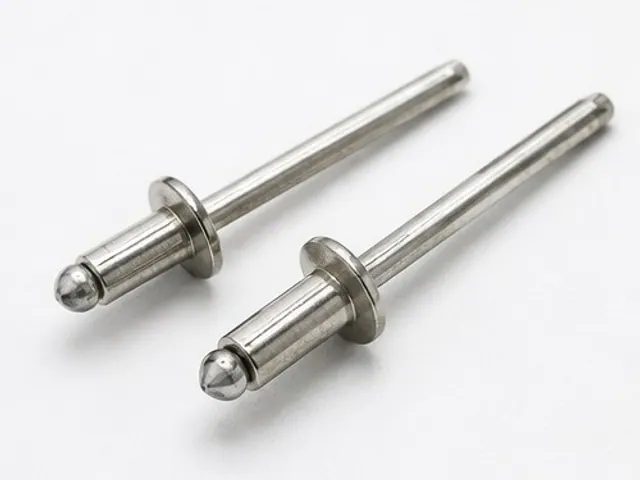

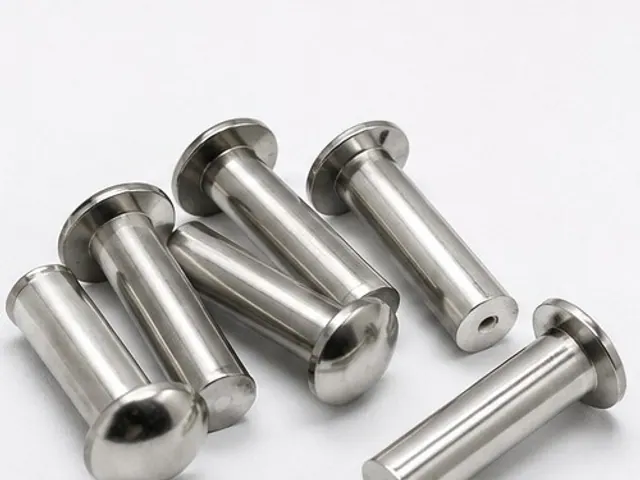

Rivets

Rivets make a permanent joint where welding would distort thin sheet or where the assembly has to stay vibration-tight without anyone re-torquing it. They are also the answer when only one side of the joint is reachable: a blind rivet sets from the face and pulls its own tail up behind the panel. We supply solid rivets for structural work and blind rivets for sheet and cladding, in steel and aluminium.

View full Rivets page

Variants: Drive, blind, cherry, tubular, self-piercing, split, solid, flush
Sizes: 3 mm – 12 mm diameter · grip range to suit
Material: Steel, stainless, aluminium, copper
Standards: IS 2155, DIN 660 / 7337, ISO 15977
Applications: Sheet metal, cladding, fabrication, transport bodies

Types we manufacture

Drive rivet

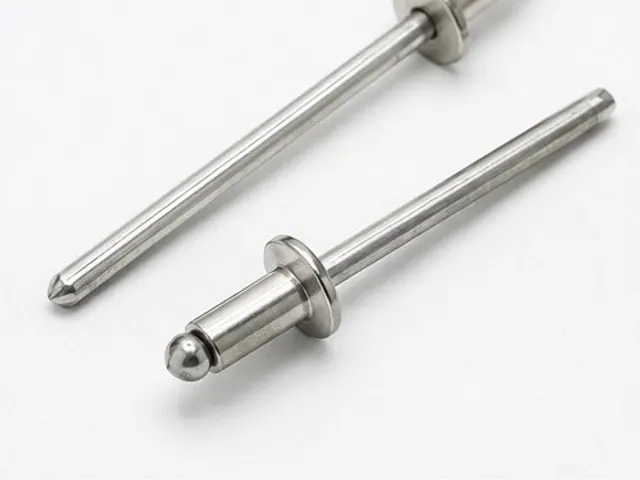

Blind rivet
Cherry rivet
Tubular rivet
Self-piercing rivet
Split rivet

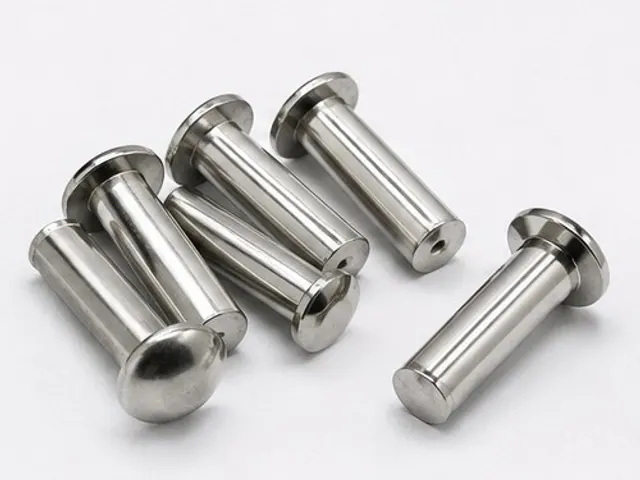

Solid rivet
Flush rivet

Sealing

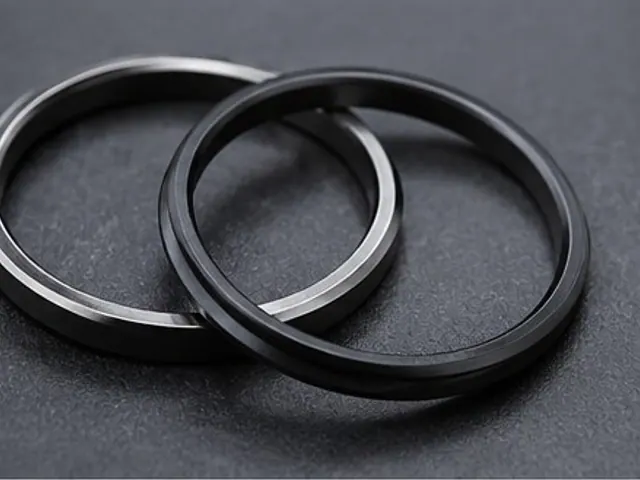

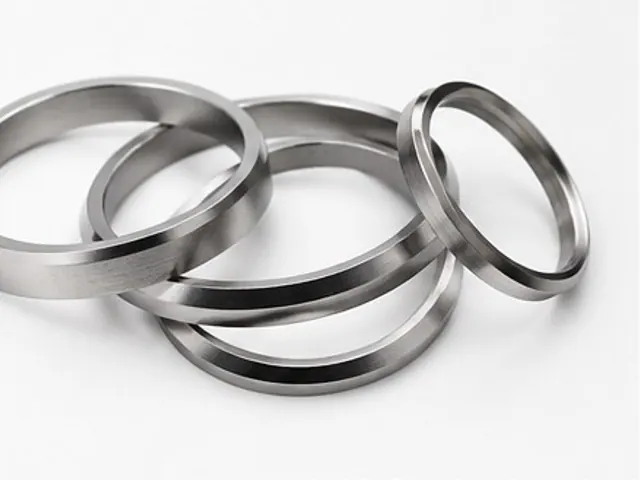

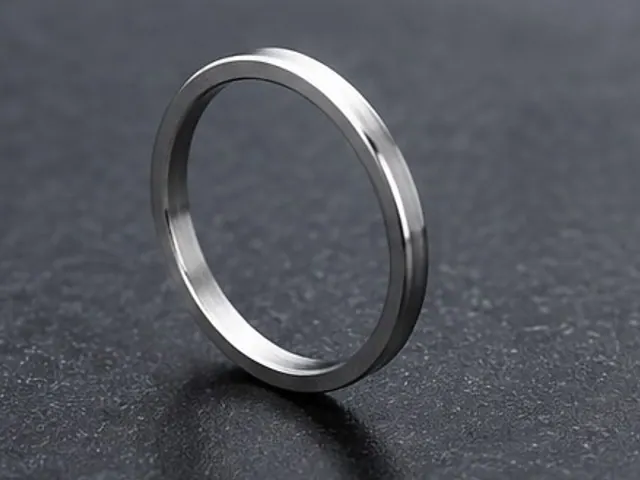

Ring gaskets

Ring-type joint gaskets seal flanged connections by deforming metal-to-metal into the machined groove of the flange, which is why they hold where a soft gasket would blow out: high pressure, high temperature, or both. Profile and hardness matter more than anything else here: the ring must be softer than the flange it seats into, so we supply with material certification and hardness readings against the R, RX and BX profiles.

View full Ring gaskets page

Profiles: R (oval and octagonal), RX, BX
Material: Soft iron, low-carbon steel, stainless 304 / 316, Inconel
Standards: ASME B16.20, API 6A, API 17D
Supplied with: Material certificate and hardness test report
Applications: Wellheads, refineries, pipelines, offshore equipment

Types we manufacture

R type ring
RX type ring
BX type ring
Combination ring
Split ring

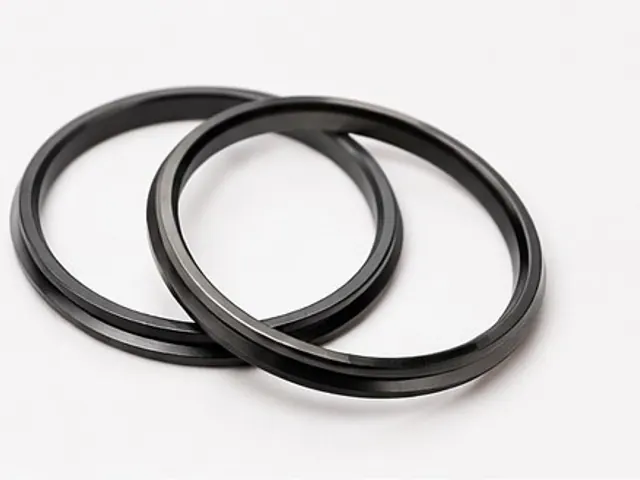

Buna-coated ring

Collated · our core line

Steel nail coils

Our founding product and the line we run the most of. Wire-collated coils for pneumatic framing, roofing and pallet nailers, in smooth, ring and screw shank: ring shank for withdrawal resistance in softwood, screw shank where the timber will move as it dries. Collation wire and coil diameter are matched to the gun so the magazine feeds without jamming at volume.

View full Steel nail coils page

Shank types: Smooth, ring, screw
Sizes: 2d – 70d (1" – 7") · 3 – 23 gauge
Finish: Bright, electro-galvanised, hot-dip galvanised, phosphate
Standards: ASTM F1667, BS EN 14592, DIN 1151
Applications: Framing, roofing, decking, pallet and crate manufacture

Types we manufacture

Smooth shank
Ring shank
Screw shank
Galvanised coil

Steel Nail Coils · In Detail

Nail sizes, gauges and shank types

Nail coils are wound into a spiral so a pneumatic gun can feed them one at a time without reloading every few fixings. We produce them across the full penny-size and wire-gauge range, with the surface treatment matched to where the work is: bright indoors, galvanised where weather or moisture will reach the fixing.

Nail SizesPenny Size

Penny Size	Length (in)	Length (mm)
2d	1"	25.4
3d	1-1/4"	31.7
4d	1-1/2"	38.1
5d	1-3/4"	44.4
6d	2"	50.8
7d	2-1/4"	57.1
8d	2-1/2"	63.5
9d	2-3/4"	69.8
10d	3"	76.2
12d	3-1/4"	82.5
16d	3-1/2"	88.9
20d	4"	101.6
30d	4-1/2"	114.3
40d	5"	127.0
50d	5-1/2"	139.7
60d	6"	152.4
70d	7"	177.8

Wire GaugesUS Steel Wire Gauge

US Steel Wire Gauge	Diameter (in)	Diameter (mm)
3	0.259	6.57
4	0.238	6.05
6	0.203	5.16
8	0.162	4.12
9	0.148	3.76
10	0.131	3.33
11	0.120	3.05
12	0.113	2.85
13	0.092	2.34
14	0.083	2.11
15	0.072	1.83
16	0.065	1.65
18	0.049	1.25
23	0.026	0.66

Common nail charts

Common steel nails have a wide flat head, a smooth shank and a diamond point: the general-purpose fixing for indoor finishing and medium to heavy work.

Size	Length	Diameter	Head Dia.	No./LB
4	1-1/2	0.099	0.250	830
6	2	0.120	0.266	430
8	2-1/2	0.148	0.281	220
10	3	0.162	0.312	170
16	3-1/2	0.177	0.344	120
20	4	0.199	0.406	78

Shank types

The shank decides how hard the nail is to pull back out. Smooth drives fastest, ring resists withdrawal in softwood, screw holds where timber will move as it dries.

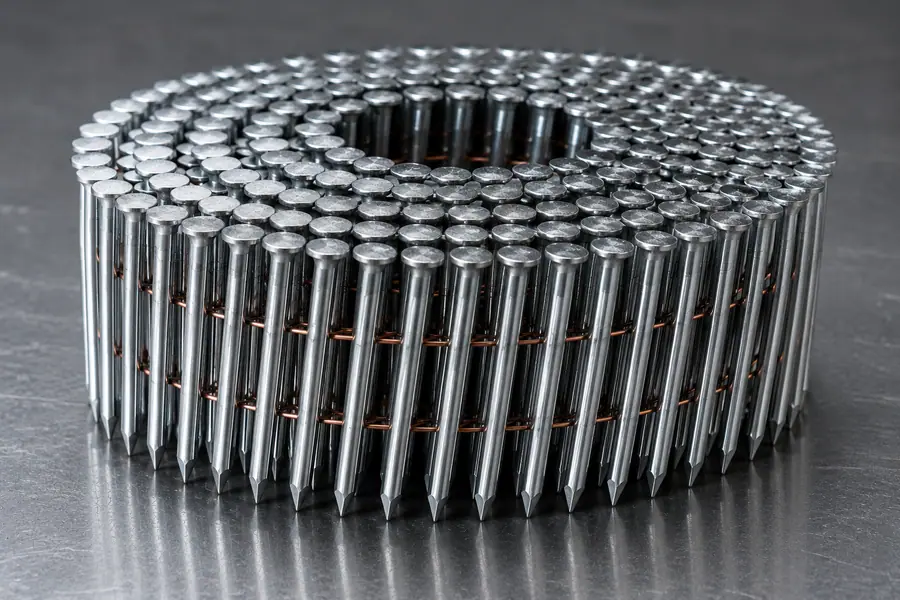

Smooth Shank Coiled Nails

Ideal for general construction and framing where maximum holding power is not required.

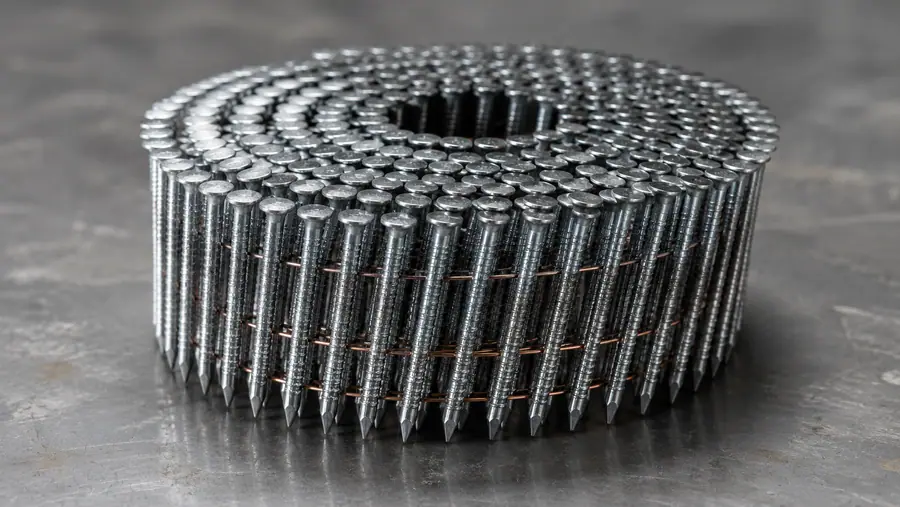

Ring Shank Coiled Nails

Offers superior withdrawal resistance, making them perfect for decking, sheathing, and subfloors.

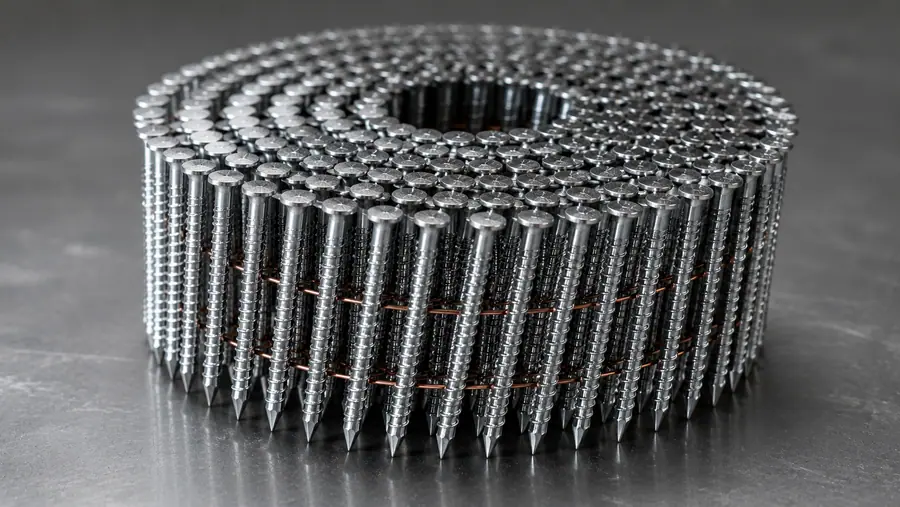

Screw Shank Coiled Nails

Provide the best holding power, often used in crating, pallet manufacturing, and framing with dense woods.

Gun compatibility

Collation and coil diameter suit all standard coil nail guns, including:

BostitchHitachi (Metabo HPT / HiKOKI)MakitaMaxPaslodeSencoSpotnailsand more

Ordering and packing

FTL, LTL & PalletsAll nail coil orders welcome.

50% / 50%Advance, then balance after 15 days.

~45 DaysGoods transit time.

Custom PackagingAddressed additionally on request.

L = 3 × T

Choosing a length. A nail should be roughly three times the thickness of the material it is fixing through: an 8-penny nail suits 1-inch stock, a 16-penny nail suits 2-inch. Too short and it will not hold; too long and the point comes through the back.

Send these with an enquiry for an accurate quotation:

Nail type and shank type.
Head type and point type.
Length, head diameter, shank diameter.
Surface coating.
Standard to follow.
Quantity per size.

Coatings for coil nails

Where the work is exposed to weather for years, the coating decides the life of the fixing more than the steel underneath it does.

Electro-galvanized

It is a zinc electrolytic process that adds a thin coating to the carbon steel nails. Electro galvanising coating can withstand dry and low-corrosion applications for a few more months or possibly an extra year. But it is not recommended for corrosive environments.

Hot dipped galvanized

It is an effective way of preventing metal corrosion, mainly used for metal structure on the facilities of the industry. Hot dipped galvanised nails are recommended for pressure-treated wood and cedar which can cause standard nails to corrode quickly.

Stainless Steel 304/316

These types of materials are the appropriate choices for high-level corrosion protection requirements, especially for most exterior applications. 316 grade stainless steel, chromium-nickel alloys can stand up to marine and corrosive industrial atmospheres.

Forming Methods

High-performance forged fasteners

Forging shapes steel while it is plastic rather than cutting material away, so the grain bends to follow the part instead of being severed by a tool. That is what stops a head shearing off a shank under load. The route is chosen by the part, not by what is idle on the shop floor.

Closed die

Repeat-volume parts

Metal is pressed inside a shaped cavity, so each piece leaves the press to the same dimensions. Tooling costs money up front and pays it back on repeat orders, which is the route for catalogue sizes and OEM schedules.

Open die

Heavy and one-off sections

Worked between flat tools with no cavity, which suits large anchors and oversize blanks where a closed die would never earn back its tooling. Dimensions are held by the operator and verified after forming.

Roll forming

Threads and long bar

Threads are rolled between hardened dies rather than cut. The surface work-hardens and the grain stays unbroken, producing a thread with better fatigue life than machining can give.

Materials and Finishes

Specify by environment, not by habit

Most fastener failures we are asked to investigate are corrosion, not overload. Find the row that matches where the part will actually sit; we will confirm availability in your sizes at quotation.

Material	Typical finish	Suited to	Notes
Mild / carbon steel	Bright, phosphate	Dry indoor assembly	Lowest cost, no corrosion protection
Carbon steel	Electro-galvanised	Sheltered outdoor	Thin, even zinc layer; not for coastal use
Carbon steel	Hot-dip galvanised	Exposed and coastal	Thicker zinc; allow thread clearance for the coating
Alloy steel	Black oxide, zinc	High-load joints	Heat treated to class 8.8 / 10.9
Stainless 304	Self-finished	Damp and washdown areas	General corrosion resistance
Stainless 316	Self-finished	Marine and chemical	Molybdenum content resists chlorides
Brass / copper	Self-finished	Electrical and decorative	Conductive, non-magnetic
Aluminium	Anodised, plain	Lightweight assemblies	Mainly rivets and sheet fixings

Standards and Sectors

We quote against the standard you name

If no standard is given we quote to the nearest IS or DIN equivalent and say so on the offer, rather than leaving you to discover the difference at goods-in.

IS 1363 / 1364DIN 931 / 933 / 934ISO 4014 / 4032 / 898-1ASTM A307 / A193 / F1554ASME B16.20API 6A / 17DASTM F1667BS EN 14592

AutomotiveConstruction and infrastructureHeavy machineryOil, gas and petrochemicalMetal fabricationPallet and packagingDistributors and stockists

Working With Us

What arrives with the goods

Global reach and reliable delivery

Sea freight on FOB or CIF terms to your named port, air freight for samples and urgent top-ups. Export packing is cartoned and labelled by size so goods-in can book a mixed container without breaking pallets open. Lead time is confirmed in writing on the sales contract, not estimated verbally.

Certified quality management

Production runs under an ISO 9001:2015 system. Sampling covers thread gauge, hardness and coating thickness, and mill test certificates plus dimensional reports are prepared with the consignment. You may appoint a third-party inspector before dispatch.

Quick and responsive support

Enquiries are answered within one working day by the person who handles your file, across India, UK and US time zones. If a size is not viable for us we say so at enquiry stage instead of quoting and slipping.

Why PAVANDEAL

Why buyers place repeat orders with us

We are a manufacturer and exporter, not a trading desk, which means the person quoting your order can see the line that will run it.

Manufacturer and exporter based in Ahmedabad, IndiaProduction and export documentation handled under one roof, so nothing is relayed through a middleman.
Standard catalogue sizes and made-to-drawing partsNuts, bolts, washers, rods, rivets and custom fasteners: send a drawing or a physical sample.
Carbon, alloy and stainless steel across the rangePlus brass, copper and aluminium where the application calls for them.
Manufactured in India, exported to 17+ marketsEstablished routes to the USA, UK, Canada, Ireland, Greece and Australia, with paperwork prepared for customs clearance.
Consistent quality at a price that holdsQuoted prices are valid for the stated period; we do not re-open pricing after a contract is signed.

Frequently Asked Questions

Fasteners, answered

What is a fastener?

A fastener is a hardware component that mechanically joins two or more parts. The category covers screws, bolts, nuts, washers, rivets and pins: anything that holds an assembly together without welding, bonding or forming the parts into one another.

What are the five basic types of fasteners?

Which materials are fasteners made from?

Which fasteners are used in welded and fabricated structures?

Do you deliver worldwide?

What do you need from me to quote?

What is your minimum order?

Can you match a sample I already buy?

Send us the size list

Share your sizes, material, finish and the standard you buy to. You will get a costed offer with lead time from the person who will handle the order, usually within one working day.
