Steel Nail Coils
High-quality nail coils for the construction, roofing, and wood pallet industries worldwide.
STEEL NAILS COIL @PDPL
Pavandeal specializes in manufacturing and exporting high-quality Nail Coils for the construction, roofing, and wood pallet industries worldwide. We offer customized nail coil sizes and packaging as per customer requirements.
With a strong focus on consistent quality, timely delivery, and long-term partnerships, we serve international markets with reliable products and professional support.
Quality Manufacturing | Custom Solutions | Global Supply
Founder & CEO
Int. Sales & Marketing Head
Nail Coils & Galvanizing

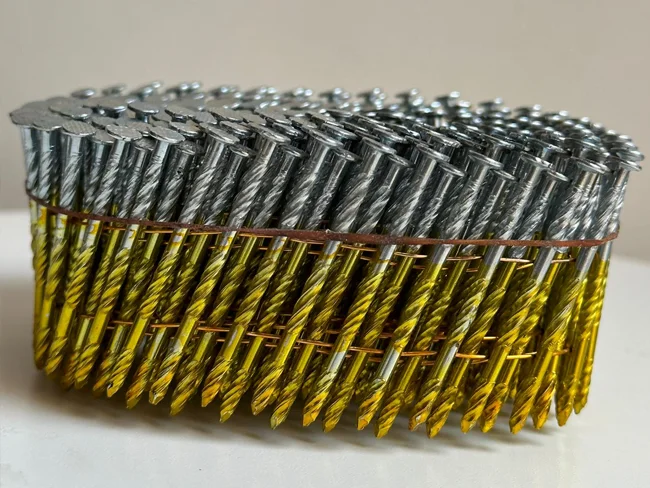

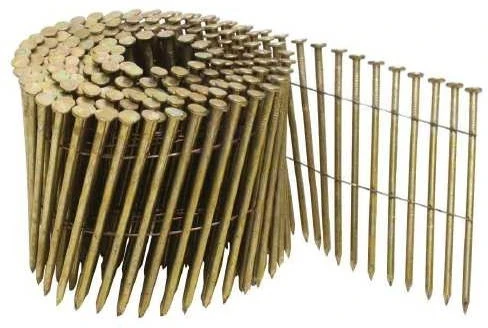

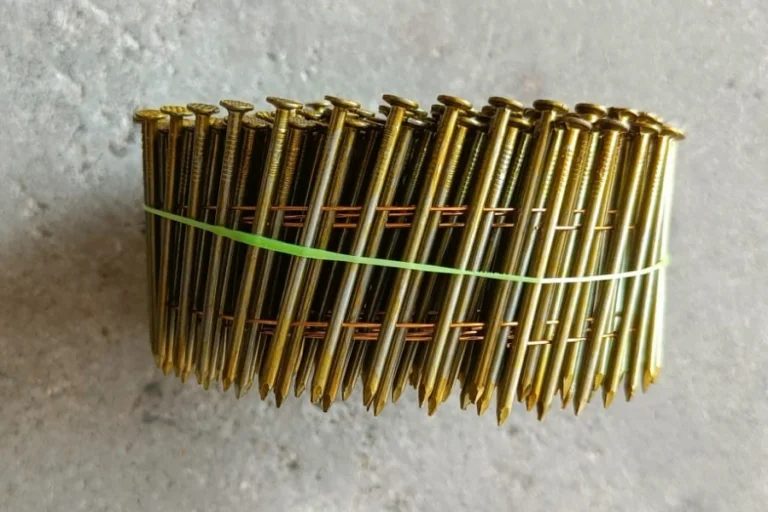

Nail coils, or coil nails, are nails that are wound into a spiral-shaped coil for easy storage and handling. This makes them a convenient option for use in nail guns, as the gun can quickly and easily dispense the nails one at a time. We produce nail coils in a wide range of sizes and finishes to meet different project requirements. They are commonly used in construction, woodworking, and other DIY projects.
Galvanized nail coils are nails that have been coated with a layer of zinc to protect against rust and corrosion. This makes them ideal for use in outdoor and other harsh environments where traditional, uncoated nails would quickly deteriorate. Galvanized nail coils are commonly used in construction, woodworking, and other DIY projects. We manufacture galvanized steel nail coils in the affordable price range and in different size and type.
GENERAL DESCRIPTION
NAIL SIZES
| Penny Size | Length (in) | Length (mm) |
|---|---|---|
| 2d | 1" | 25.4 |
| 3d | 1-1/4" | 31.7 |
| 4d | 1-1/2" | 38.1 |
| 5d | 1-3/4" | 44.4 |
| 6d | 2" | 50.8 |
| 7d | 2-1/4" | 57.1 |
| 8d | 2-1/2" | 63.5 |
| 9d | 2-3/4" | 69.8 |
| 10d | 3" | 76.2 |
| 12d | 3-1/4" | 82.5 |
| 16d | 3-1/2" | 88.9 |
| 20d | 4" | 101.6 |
| 30d | 4-1/2" | 114.3 |
| 40d | 5" | 127.0 |
| 50d | 5-1/2" | 139.7 |
| 60d | 6" | 152.4 |
| 70d | 7" | 177.8 |
NAIL SIZES
| Steel Wire Gauge | Diameter (in) | Diameter (mm) |
|---|---|---|
| 3 | 0.259 | 6.57 |
| 4 | 0.238 | 6.05 |
| 6 | 0.203 | 5.16 |
| 8 | 0.162 | 4.12 |
| 9 | 0.148 | 3.76 |
| 10 | 0.131 | 3.33 |
| 11 | 0.120 | 3.05 |
| 12 | 0.113 | 2.85 |
| 13 | 0.092 | 2.34 |
| 14 | 0.083 | 2.11 |
| 15 | 0.072 | 1.83 |
| 16 | 0.065 | 1.65 |
| 18 | 0.049 | 1.25 |
| 23 | 0.026 | 0.66 |

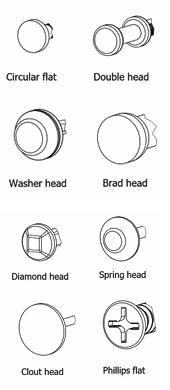

NAIL HEAD TYPES

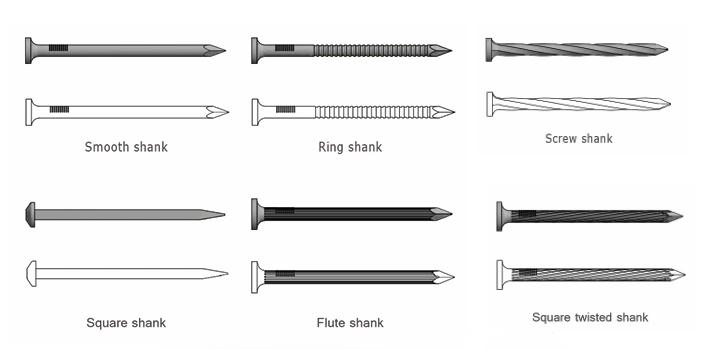

NAIL SHANK TYPES

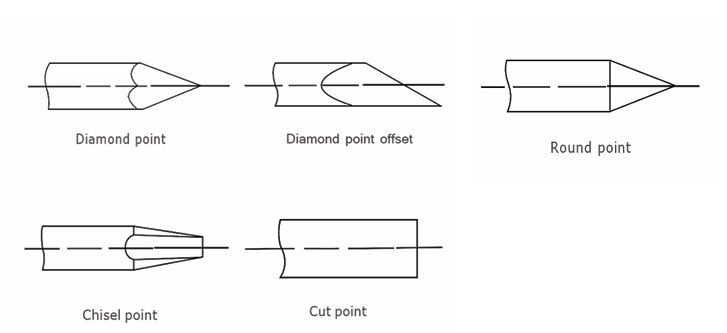

NAIL POINT TYPES
Common Nails & Chart
Common steel nails feature a wide head, a smooth shank, and a diamond-shaped point. They are the most popular and versatile fasteners for indoor finishing projects.
- Most popular & versatile fasteners for indoor finishing.
- Strong and stiff for medium & heavy projects.
- Great holding power and resistant to bending.
- Large & flat head can flush with the material's surface.
- Smooth shank for easy operation.
- Complete gauges, length and sizes are available.
| Size | Length | Diameter | Head Dia. | No./LB |
|---|---|---|---|---|
| Aluminium | ||||
| 4 | 1-1/2 | 0.099 | 0.250 | |
| 6 | 2 | 0.120 | 0.266 | |
| 8 | 2-1/2 | 0.148 | 0.281 | |
| 10 | 2 | 0.162 | 0.312 | |
| 16 | 3-1/2 | 0.177 | 0.344 | |
| 20 | 4 | 0.199 | 0.406 | |
| Size | Length | Diameter | Head Dia. | No./LB |
|---|---|---|---|---|
| Copper | ||||
| - | 5/6 | 0.065 | 0.156 | 1380 |
| - | 3/4 | 0.065 | 0.156 | 1160 |
| - | 3/4 | 0.072 | 0.172 | 960 |
| - | 7/8 | 0.072 | 0.172 | 810 |
| 5 | 1 | 0.072 | 0.172 | 700 |
| 5 | 1-1/4 | 0.083 | 0.203 | 420 |
| 4 | 1-1/2 | 0.109 | 0.250 | 210 |
| 5 | 1-3/4 | 0.109 | 0.250 | 180 |
| 5 | 1-3/4 | 0.120 | 0.266 | 140 |
| Size | Length | Diameter | Head Dia. | No./LB |
|---|---|---|---|---|
| Steel | ||||
| 2 | 1 | 0.072 | 0.172 | 850 |
| 3 | 1-1/4 | 0.080 | 0.203 | 540 |
| 4 | 1-1/2 | 0.099 | 0.250 | 290 |
| 5 | 1-3/4 | 0.099 | 0.250 | 250 |
| 6 | 2 | 0.113 | 0.266 | 170 |
| 7 | 2-1/4 | 0.113 | 0.266 | 150 |
| 8 | 2-1/2 | 0.131 | 0.281 | 100 |
| 9 | 2-3/4 | 0.131 | 0.281 | 92 |
| 10 | 3 | 0.148 | 0.312 | 66 |
| 12 | 3-1/4 | 0.148 | 0.312 | 61 |
| 16 | 3-1/2 | 0.162 | 0.344 | 47 |
| 20 | 4 | 0.192 | 0.406 | 30 |
| 30 | 4-1/2 | 0.207 | 0.438 | 23 |
| 40 | 5 | 0.226 | 0.469 | 14 |
| 50 | 5-1/2 | 0.244 | 0.500 | 14 |
| 60 | 6 | 0.262 | 0.531 | 11 |
NAILS COIL

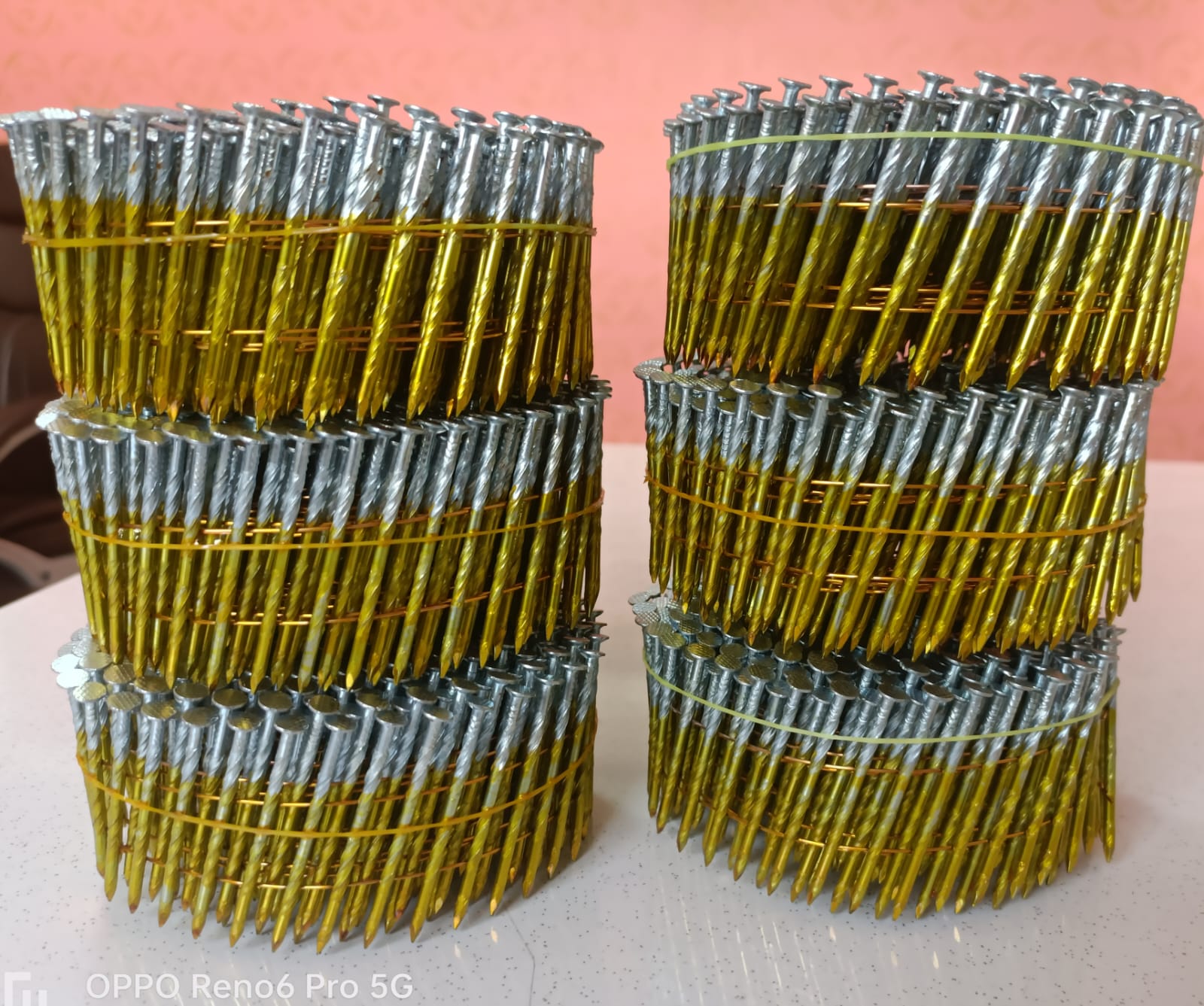

Main types include coiled smooth shank nails, coiled ring shank nails and coiled screw nails.
- Designed for high efficient operation.
- For use with 15° wire coil framing nailers.
- Proper fastener feeding for high volume operations.
- Resistant to rust for outdoor applications.
- Tighter hold power and increased durability.
- Surface treatment: bright, electro galvanized, hot dipped galvanized, phosphate coated.
Coiled Nails for High Efficiency

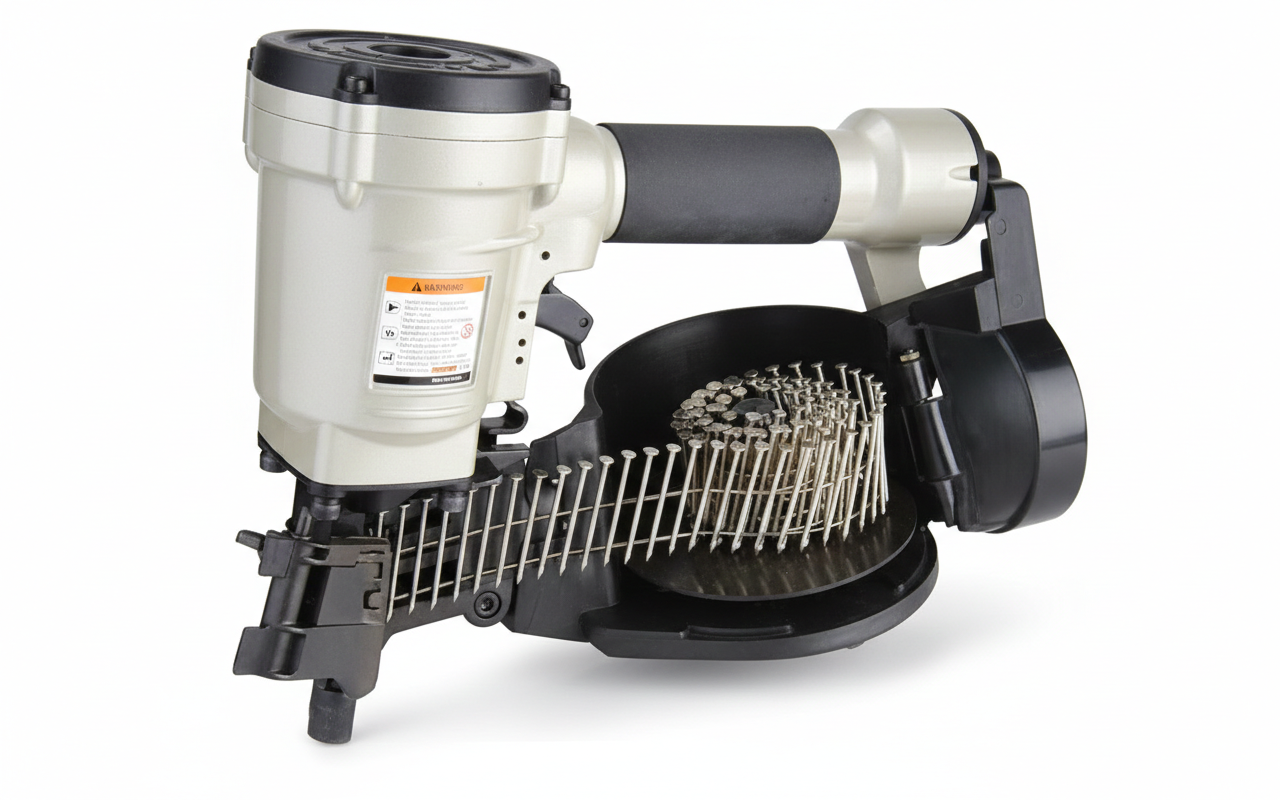

Designed for use with nail guns, our coiled nails ensure proper fastener feeding for high-volume operations.
Ideal for general construction and framing where maximum holding power is not required.
Offers superior withdrawal resistance, making them perfect for decking, sheathing, and subfloors.
Provide the best holding power, often used in crating, pallet manufacturing, and framing with dense woods.
Compatible with all standard coil nail guns.
Bostitch, Hitachi, Makita, Max, Paslode, Senco, Spotnails, and more.
IMPORTANT NOTE

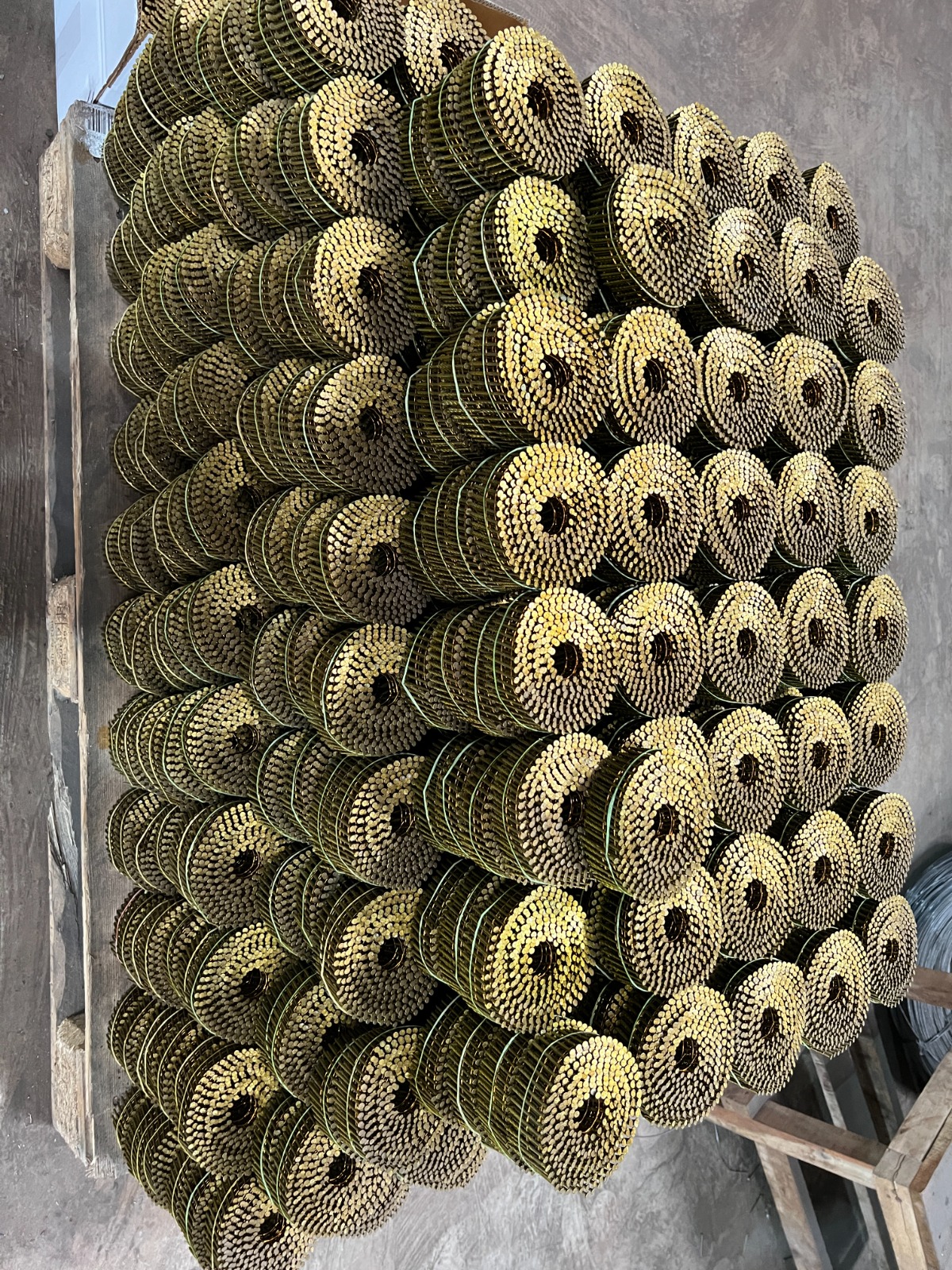

- Nail Coils orders (FTL, LTL and Pallets) all welcome.
- 50% advance and 50% after 15 days.
- Goods transit time is almost 45 days.
- We will deliver doorstep as per sales contract.
- Custom Packaging can be addressed additionally on request.
How to Choose a Right Nail
In actual operation, a proper nail length should be 3 times the thickness of the substrate you are nailing through. E.g., A 8-penny nail is suitable to fasten a 1-inch-thick material and a 16-penny nail is suitable to fasten a 2-inch-thick material.
The following information are required for an accurate quotation:
- Nail type.
- Head type and surface.
- Shank type.
- Point type.
- Length.
- Head diameter, shank diameter.
- Surface coating.
- Standards to follow.
- Other characteristic dimensions.
Sometimes, the elements of the project will be exposed to outdoor or wet conditions for a long time. If so, except for a proper nail length, an anti-corrosion surface coating is another factor to consider in making the project strong and reliable.
Electro-galvanized
It is a zinc electrolytic process that adding a thin coating to the carbon steel nails. Electro galvanizing coating can withstand dry and low-corrosion applications for a few more months or possibly an extra year. But it is not recommended for corrosive environments.
Hot dipped galvanized
It is an effective way of metal corrosion, mainly used for metal structure on the facilities of the industry. Hot dipped galvanized nails are recommended for pressure treated wood and cedar which can cause standard nails to corrode quickly.
Stainless Steel 304/316
These types of materials are the appropriate choices for high level corrosion protection requirement. Especially for most exterior applications. 316 grade stainless steel, chromium-nickel alloys can stand up Marine and corrosive industrial atmospheres.
